2.5 Inch Glycerin Filled Radial Pressure Gauge with Dual Scale for Accurate Low-Pressure Measurement

opis produktu

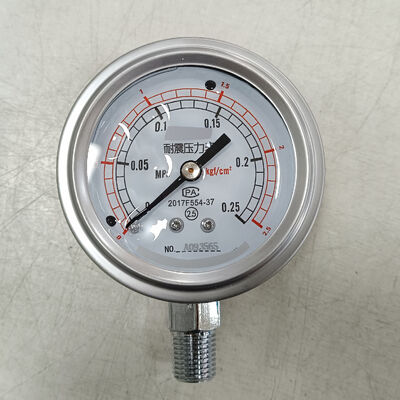

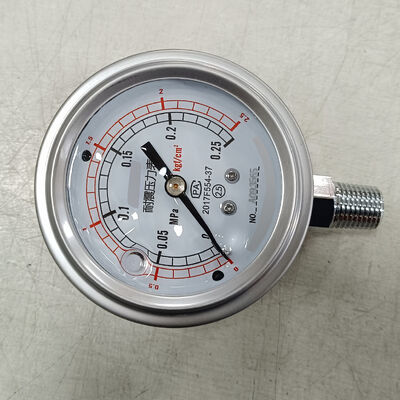

2.5" 60mm Radial Pressure Gauge | 0-0.25MPa & 0-2.5kgf/cm² Dual Scale | Glycerin Filled

Precision Low-Pressure Radial Manometer

Our 2.5-inch (60mm) Radial Pressure Gauge is engineered for accurate measurement in low-pressure applications. Featuring a durable all-stainless steel construction and a clear dual-scale dial (0-0.25MPa and 0-2.5kgf/cm²), this precision instrument is factory-filled with glycerin to ensure stable, reliable readings even in environments with vibration or pulsation. This high-quality liquid filled manometer is ideal for applications requiring precise monitoring at lower pressure ranges.

Key Features & Benefits

Dual Pressure Scale Display: Features both metric (0-0.25MPa) and traditional (0-2.5kgf/cm²) units on a single, clear dial for universal compatibility and ease of use.
Superior Vibration Damping: As a glycerin filled pressure gauge, it effectively absorbs mechanical shock and pulsation, providing a steady pointer reading and extended instrument life.

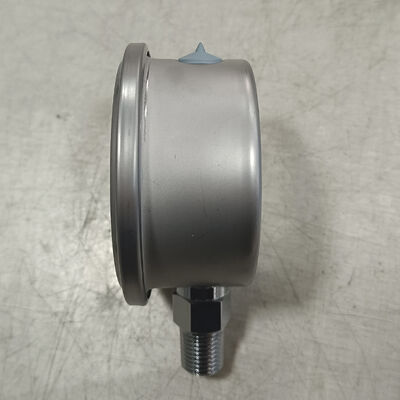

Robust Radial Connection: Standard radial pressure gauge design with back/bottom connection for versatile and straightforward installation on panels, pipes, or equipment.
Full Stainless Steel Build: The case, internals, and wetted parts are constructed from corrosion-resistant stainless steel, ensuring longevity in demanding environments.
Compact & Readable: The 2.5-inch (60mm) dial size offers an optimal balance between space-saving design and excellent readability.

Technical Specifications

Specification	Detail
Dial Size	2.5 inches / 60 mm
Pressure Range	0-0.25MPa / 0-2.5kgf/cm² (Dual Scale)
Connection Type	Radial (Back/Bottom Mount)
Connection Thread	G1/4" or 1/4" NPT (Standard)
Case & Material	304 or 316 Stainless Steel (Full Construction)
Fill Fluid	Glycerin (Standard)
Accuracy Class	±1.6% of Full Scale (Standard)
Window	Tempered Safety Glass
Operating Temp.	-20°C to +60°C

Why This Glycerin Filled Gauge is Essential

A liquid filled manometer, specifically a glycerin filled pressure gauge, provides critical performance benefits for low-pressure measurement:

Enhanced Accuracy in Low Ranges: Vibration damping is crucial for precise reading of small pointer movements in low-pressure gauges.
Long-Term Reliability: The glycerin lubricates the internal movement, minimizing wear and preventing pointer oscillation.
Environmental Protection: The sealed, liquid-filled case guards against internal condensation, corrosion, and icing.
Ideal for Sensitive Systems: Perfect for applications like gas control, low-pressure air systems, hydraulic control circuits, and instrumentation panels where stable readings are paramount.

Typical Applications

Low-Pressure Air & Gas Systems
Pneumatic Control Panels
Laboratory and Testing Equipment
Hydraulic Control Circuits
Medical Gas Equipment Monitoring
Industrial Instrumentation Racks

Ordering & Customization

We specialize in precision pressure instruments. Custom options such as different connection threads, pressure ranges, or dial configurations are available.

For technical specifications, pricing, or to discuss your application:
