4-inch (100mm) Pressure Gauge

0-1.6MPa Manometer

Economy & Durable Bourdon Tube Pressure Gauge

Podstawowe informacje

Zapłata

Galeria

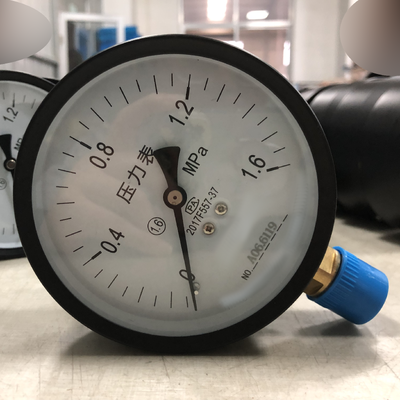

4-inch (100mm) Bourdon Tube Pressure Gauge 0-1.6MPa Economy & Durable for Reliable Mechanical Measurement

opis produktu

4" 100mm Bourdon Tube Pressure Gauge | 0-1.6MPa | Economy & Durable

Our 4-inch (100mm) Bourdon Tube Pressure Gauge is a classic mechanical pressure measuring instrument designed for reliable, maintenance-free operation without electricity. Featuring a robust Bourdon tube type movement, this economy pressure gauge delivers accurate readings from 0-1.6MPa with an accuracy class of 1.6%. The durable black steel case and brass connection ensure long-lasting performance, while the aluminum pointer and dial provide clear, easy reading. As a true no oil pressure gauge, it's the perfect pressure meter gauge for cost-conscious applications requiring dependable, long-term service.

Key Features & Benefits

Mechanical Simplicity: Operating purely as a no oil pressure gauge, this instrument requires no power source, no batteries, and no complex electronics—just reliable, continuous pressure indication.
Proven Bourdon Tube Design: The precision Bourdon tube type mechanism has been the industry standard for over a century, offering dependable accuracy and exceptional longevity.
Exceptional Value: As an economy pressure gauge, it delivers professional-grade performance at an affordable price point, making it ideal for high-volume installations and budget-conscious projects.
Durable Construction: The black steel case protects internal components from physical damage, while the brass connection ensures a reliable, corrosion-resistant seal.
Clear Readability: The aluminum pointer and dial with high-contrast markings allow for quick, accurate pressure reading at a glance.

Technical Specifications

Dial Size	4 inches / 100 mm
Pressure Range	0-1.6MPa
Accuracy Class	1.6% FS
Gauge Type	Bourdon Tube Type (Mechanical)
Case Material	Black Steel
Connection Material	Brass
Pointer & Dial	Aluminum
Power Source	None (Fully Mechanical)
Connection Type	Bottom (Radial)

Typical Applications

This versatile pressure meter gauge is ideal for:

Air Compressors: Monitoring receiver tank pressure
Water Pumps: Discharge and suction pressure indication
Industrial Machinery: General pressure monitoring on production equipment
HVAC Systems: Air and water pressure in heating/cooling circuits
Hydraulic Systems: Pressure monitoring where electronic gauges aren't required
Process Lines: Non-corrosive fluid and gas monitoring

The Economy Choice Without Compromise

When your application demands reliable pressure measurement but budget is a concern, our economy pressure gauge delivers professional accuracy with Class 1.6 ensuring readings you can trust, long service life through quality materials and proven mechanical design, wide availability with standard ranges and connections for quick delivery, and no hidden costs with no power supply, signal conditioners, or programming required.

Ordering & Technical Support

For pricing, specifications, or volume discounts, please contact our technical support team for personalized assistance.
